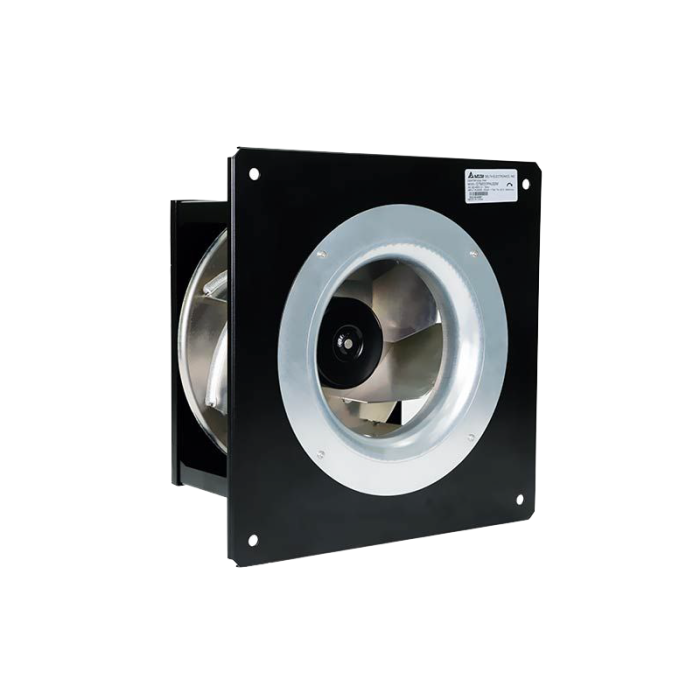

Delta Fan GTM019FUG09R-V
More Information
| Brand | Delta |
|---|---|
| Model Number | GTM019FUG09R-V |
| Type | EC Fans |
| Series | GTM |
| Frame Size | Square-225mmLx225mmHx99.80mm |
| Bearing Type | Ball |
| Voltage | 230 VAC |
| Speed | 4150 RPM |
| Power | 172 W |
| Air Flow | 587.0 CFM (16.44m³/min) |
| Static Pressure | 3.966 InH₂O (988.0 Pa) |
| Noise | 76.5 dBA |
| Approval Agency | cUL, TUV, UL |
| Expected life | 60000 Hours at 40°C |
| Terminals | 3 Wire Leads with Ferrules, 4 Wire Leads with Ferrules |
| IP rating | IP54 - Dust Protected, Water Resistant |
| Operating Temperature | -13 ~ 140°F (-25 ~ 60ºC) |
| Housing Material | Frame:Aluminum;Blade:Plastic |
