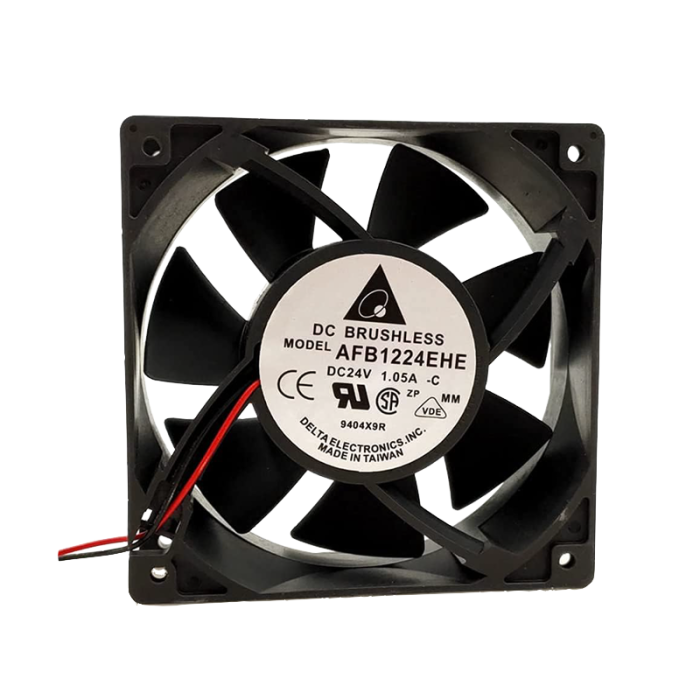

Delta Fans AFB1224EHE-C
More Information
| Brand | Delta |
|---|---|
| Model Number | AFB1224EHE-C |
| Type | Tubeaxial |
| Series | AFB Series |
| Frame Size | Square-120mm Lx120mm H |
| Bearing Type | Ball |
| Voltage | 24 VDC |
| Speed | 4600 RPM |
| Power | 20.4 W |
| Air Flow | 212.6 CFM (5.95m³/min) |
| Static Pressure | 0.844InH₂O(210.2Pa) |
| Noise | 58.5dBA |
| Approval Agency | CE, CSA, UL, VDE |
| Terminals | 2 Wire Leads |
| Operating Temperature | -10~+70ºC |
