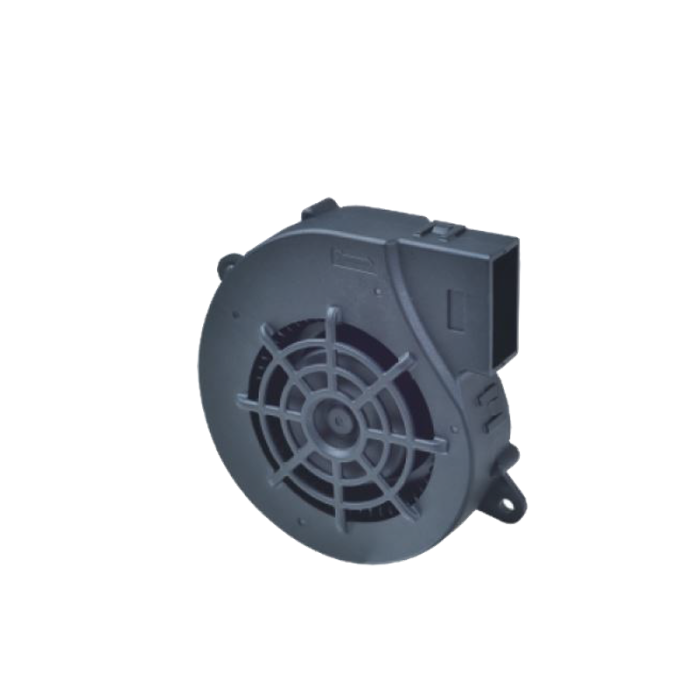

Pelko Motors DC Radial Blowers B Series B1025M24BPLBxy-53
- Mfr. No:B1025M24BPLBxy-53
- Brand:Pelko Motors
- Product type:
- Datasheet:
| Brand |
Pelko Motors |
| Type |
DC Radial Blowers |
| Series |
B |
| Frame Size |
100x98x26mm |
| Bearing Type |
2Ball |
| Voltage |
24 VDC |
| Current |
0.195 A |
| Power |
4.68 W |
| Speed |
3800 RPM |
| Air Flow |
13.02 CFM |
| Static Pressure |
0.55 InH?O |
| Noise |
48.9 dBA |
| Housing Material |
Impeller:Thermoplastic PBT+15% GF, UL94-V0;Frame:Plastic Cover/Aluminum die cast Base |
| Terminals |
UL 1007, AWG 24 |
| Leadwire length |
280±10mm, Red(+), Black(-) |
| IP rating |
IP51, IP54, IP56, IP67 |
