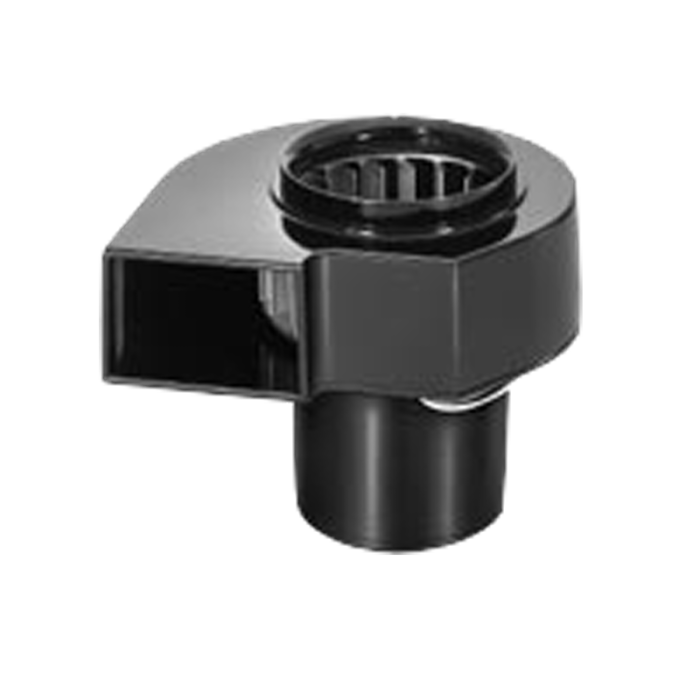

ORIX Blowers T-MB1040-D-GA
ORIX T-MB1040-D-GA Impeller Diameter Ф100mm MB1040 Series AC Centrifugal Blower
- SKU
- OXB-019
There is no price at present, please contact us.
More Information
| Brand | ORIX |
|---|---|
| Model Number | T-MB1040-D-GA |
| Type | AC Centrifugal Blower |
| Series | MB1040 |
| Frame Size | Impeller Diameter Ф100mm |
| Frequency | 50/60 Hz |
| Bearing Type | Ball |
| Voltage | Single-Phase200/220/230 VAC |
| Current | 0.25/0.30 A |
| Power | 40/50/55 W |
| Speed | 2750/3100/3200/2750/3250 RPM |
| Air Flow | 2.3/2.6/2.7/2.4 m³/min |
| Static Pressure | 206/206/304 Pa |
| Noise | 61/64/65 dBA |
| Housing Material | Motor Case:Die Cast Aluminum;Casing:Die Cast Aluminum;Impeller:Aluminum |
