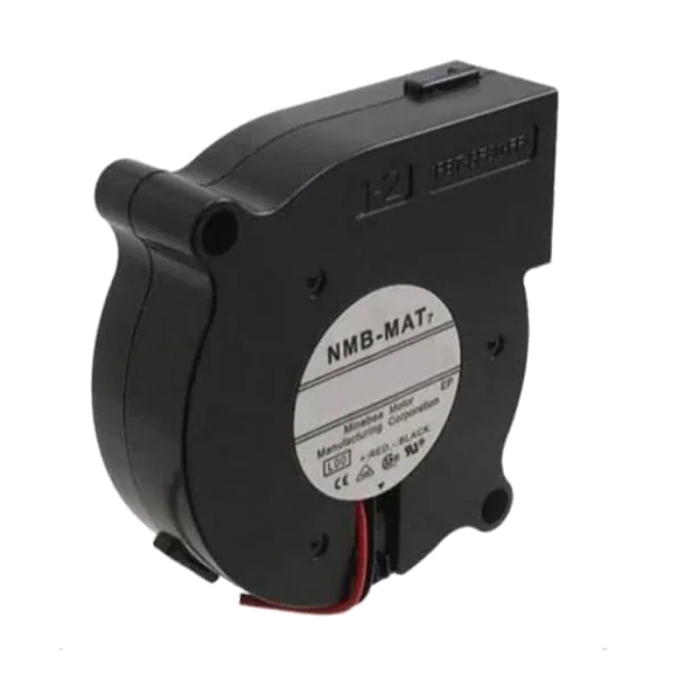

NMB Blowers 05115GS-24P-AAD-0
NMB 05115GS-24P-AAD-0 Ф51x15mm 05115GS Series DC Blowers
- SKU
- NBB-002
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 05115GS-24P-AAD-0 |
| Type | DC Blowers |
| Series | 05115GS |
| Frame Size | Ф51x15mm |
| Bearing Type | Sleeve |
| Voltage | 24 V |
| Current | 0.07 A |
| Power | 1.68 W |
| Speed | 5600 RPM |
| Air Flow | 4.2 CFM |
| Static Pressure | 0.74 InH₂O |
| Noise | 38.5 dBA |
| Housing Material | Casing:Plastic(Black)UL94V-0;Impeller:Plastic (Black)UL94V-0 |
| Expected life | 40ºC 40,000 Hours |
| Terminals | UL1061, AWG26, +Red, -Black |
| Operating Temperature | -10ºC~+70ºC |
