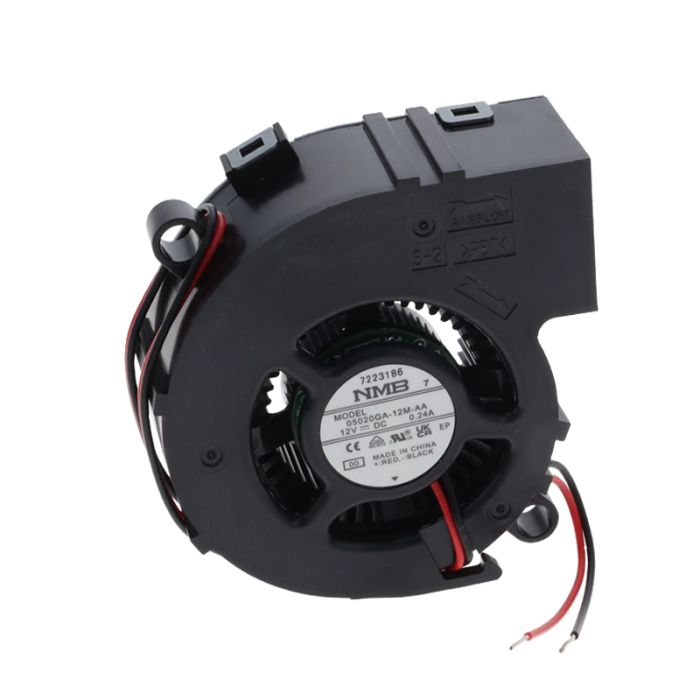

NMB Blowers 05020GA-12K-AA-00
calcActive())">
More Information
| Brand | NMB |
|---|---|
| Model Number | 05020GA-12K-AA-00 |
| Type | DC Blowers |
| Series | 05020GA/BM5020 |
| Frame Size | 50x50x20mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 0.07 A |
| Power | 0.84 W |
| Speed | 3600 RPM |
| Air Flow | 3.5 CFM |
| Static Pressure | 0.3 InH₂O |
| Noise | 20 dBA |
| Housing Material | Casing Lower:Plastic (Black) UL94V-0;Casing Upper:Steel;Impeller:Plastic (Black) UL94V-0 |
| Expected life | 25ºC 50,000 Hours |
| Terminals | UL1061, AWG26, +Red, -Black |
| Operating Temperature | -10ºC~+70ºC |
