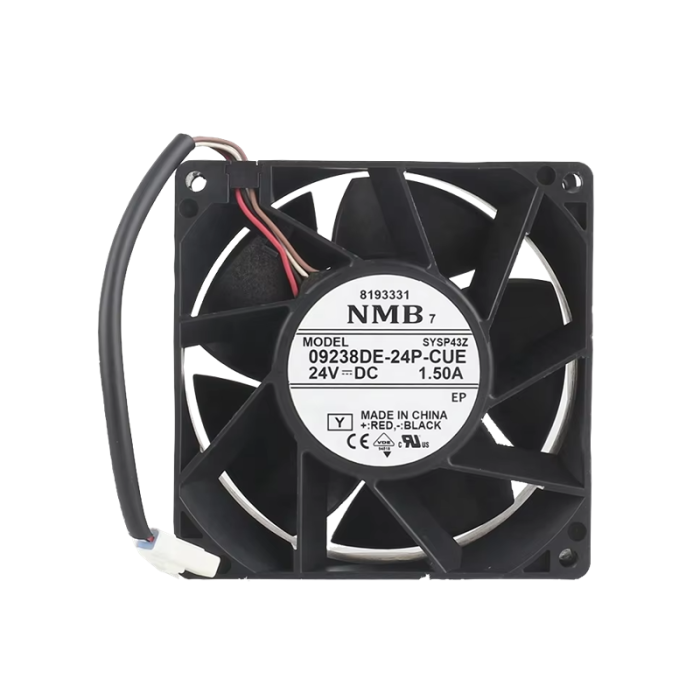

NMB Fans 09328DE-24Q-GAG-0
NMB 09328DE-24Q-GAG-0 92x38mm 09238DE （G-Type）Potting Ⅱ Series DC Axial Fans
- SKU
- NBF-1644
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 09328DE-24Q-GAG-0 |
| Type | DC Axial Fans |
| Series | 09238DE （G-Type）Potting Ⅱ |
| Frame Size | 92x38mm |
| Bearing Type | Ball |
| Voltage | 24 V |
| Current | 1.2 A |
| Speed | 8200 RPM |
| Power | 28.8 W |
| Air Flow | 137.7 CFM |
| Static Pressure | 1.32 InH?O |
| Noise | 62 dBA |
| Expected life | 25oC 100,000 Hours |
| Terminals | UL2517, AWG22, +Red, -Black |
| IP rating | IP68 |
| Operating Temperature | -10oC~+60oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
