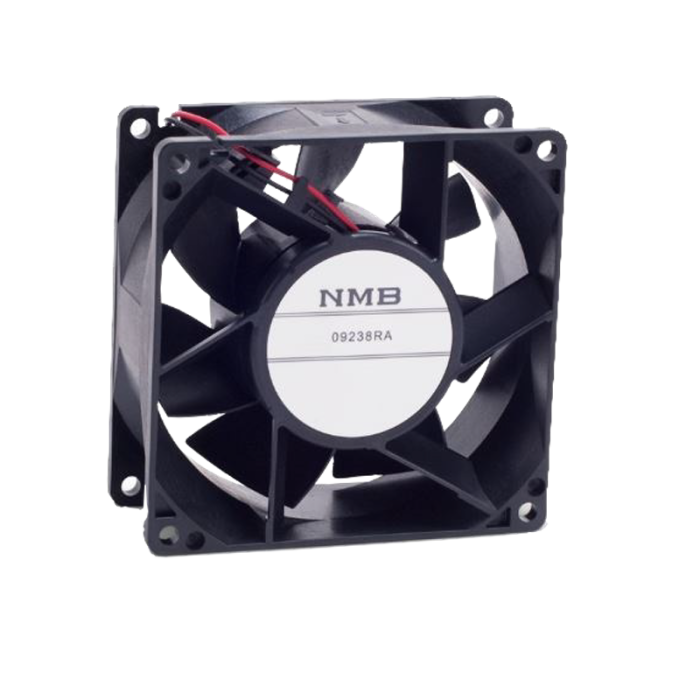

NMB Fans 09238RA-24P-EAD-0
NMB 09238RA-24P-EAD-0 92x38mm 09238RA （D-Type） Series DC Axial Fans
- SKU
- NBF-1690
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 09238RA-24P-EAD-0 |
| Type | DC Axial Fans |
| Series | 09238RA （D-Type） |
| Frame Size | 92x38mm |
| Bearing Type | Ball |
| Voltage | 24 V |
| Current | 0.92 A |
| Speed | 6700 RPM |
| Power | 22.08 W |
| Air Flow | 141.2 CFM |
| Static Pressure | 1.04 InH?O |
| Noise | 61 dBA |
| Expected life | 25oC 80,000 Hours |
| Terminals | UL3385, AWG26, +Red, -Black |
| Operating Temperature | -10oC~+70oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
