NMB Fans 08080EA-12S-EUE-0

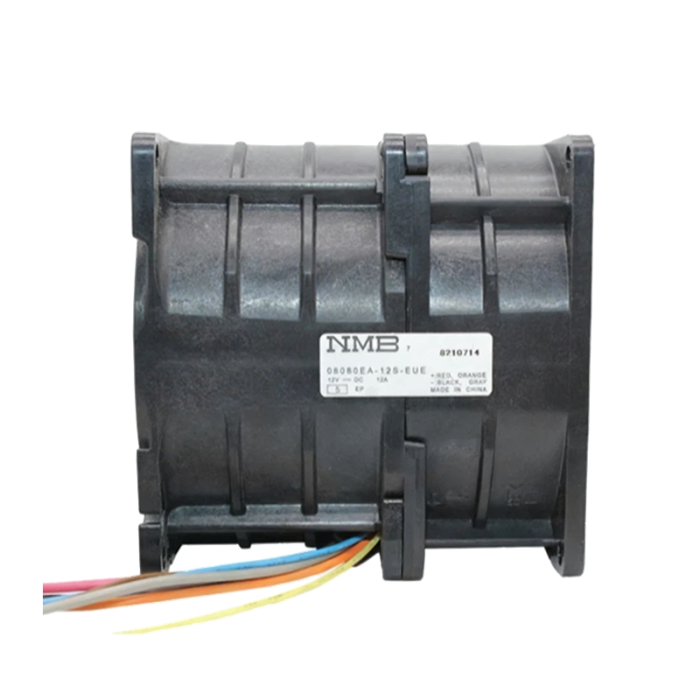

NMB 08080EA-12S-EUE-0 80x80mm 08080EA（E-Type） Series DC Axial Fans
- SKU
- NBF-1736
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 08080EA-12S-EUE-0 |
| Type | DC Axial Fans |
| Series | 08080EA（E-Type） |
| Frame Size | 80x80mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 10 A |
| Speed | 15400/13900 RPM |
| Power | 120 W |
| Air Flow | 171 CFM |
| Static Pressure | 6.8 InH?O |
| Noise | 83.5 dBA |
| Expected life | 40oC 70,000 Hours |
| Terminals | UL10368 AWG26 +Red ,-Black , +Orange ,-Gray |
| Operating Temperature | -10oC~+60oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
