NMB Fans 08038DA-12S-EAE-00

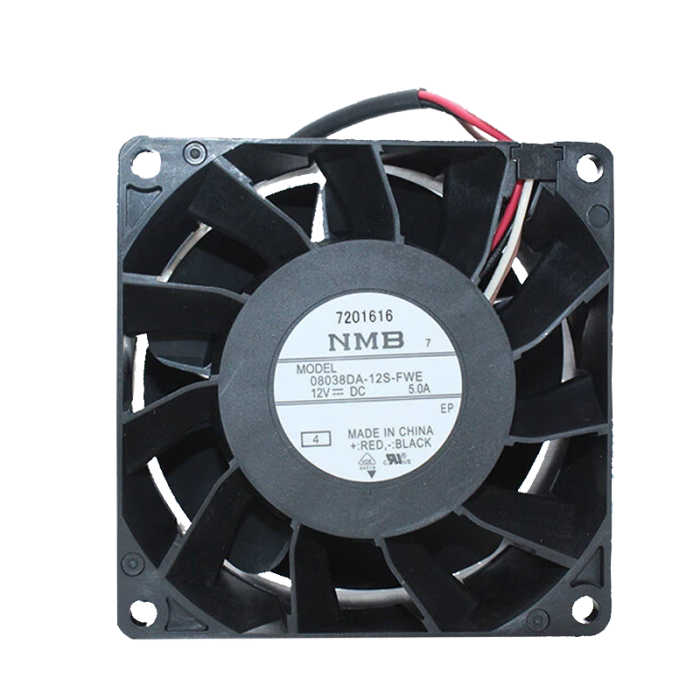

NMB 08038DA-12S-EAE-00 80x38mm 08038DA （E-Type Single Phase） Series DC Axial Fans
- SKU
- NBF-1733
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 08038DA-12S-EAE-00 |
| Type | DC Axial Fans |
| Series | 08038DA （E-Type Single Phase） |
| Frame Size | 80x38mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 3.9 A |
| Speed | 15000 RPM |
| Power | 46.8 W |
| Air Flow | 118.5 CFM |
| Static Pressure | 4.1 InH?O |
| Noise | 72 dBA |
| Expected life | 40oC 70,000 Hours |
| Terminals | UL3385, AWG20, +Red, -Black |
| Operating Temperature | -10oC~+70oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
