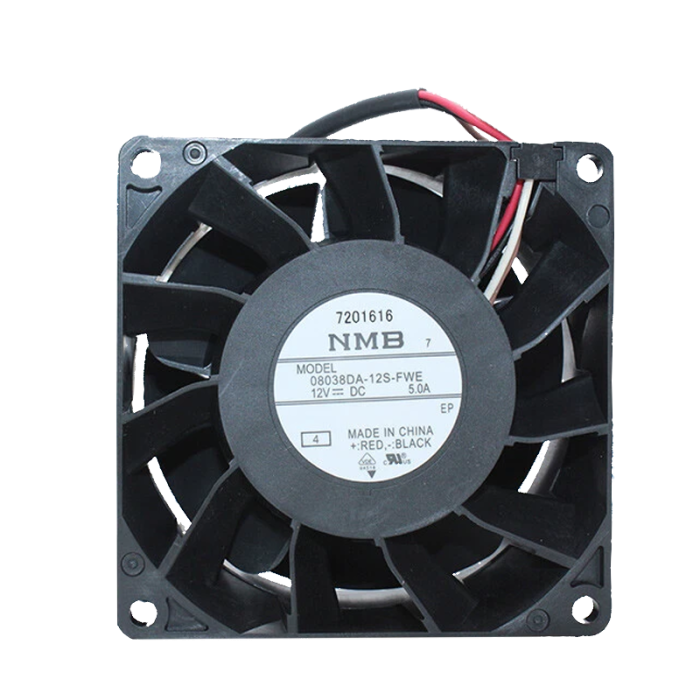

NMB Fans 08038DA-12N-EU-D0
NMB 08038DA-12N-EU-D0 80x38mm 08038DA/3115FB Series DC Axial Fans
- SKU
- NBF-1731
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 08038DA-12N-EU-D0 |
| Type | DC Axial Fans |
| Series | 08038DA/3115FB |
| Frame Size | 80x38mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 1.45 A |
| Speed | 8500 RPM |
| Power | 17.4 W |
| Air Flow | 83 CFM |
| Static Pressure | 1.93 InH?O |
| Noise | 63 dBA |
| Expected life | 40oC 70,000 Hours |
| Terminals | UL10368, AWG22, +Red, -Black |
| Operating Temperature | -10oC~+60oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
