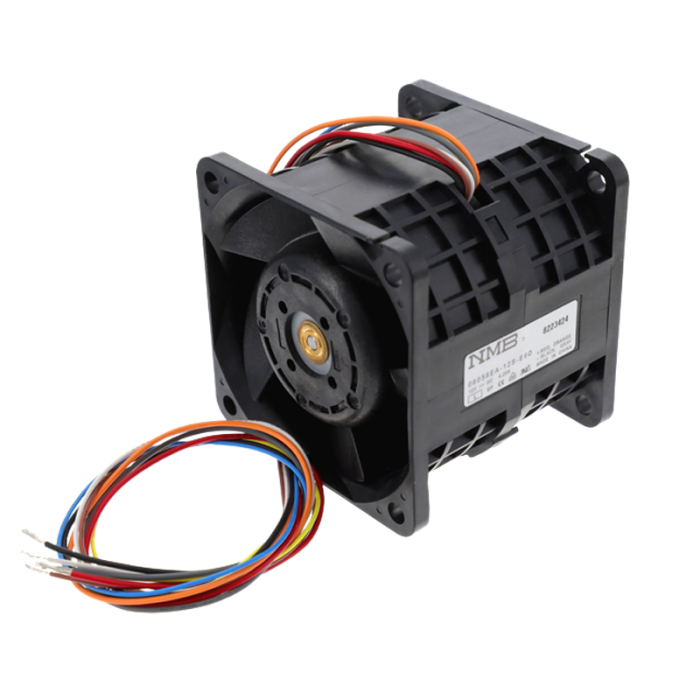

NMB Fans 06056EA-12R-WW-00
NMB 06056EA-12R-WW-00 60x60x56mm 06056EA（二重反転型） Series DC Axial Fans Counter Rotating Fans/PWM Speed Control Fans
- SKU
- NBF-1730
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 06056EA-12R-WW-00 |
| Type | DC Axial Fans Counter Rotating Fans/PWM Speed Control Fans |
| Series | 06056EA（二重反転型） |
| Frame Size | 60x60x56mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 2.5 A |
| Speed | 14800/14700 RPM |
| Power | 30 W |
| Air Flow | 78.4 CFM |
| Static Pressure | 3.54 InH?O |
| Noise | 72.5 dBA |
| Expected life | 40oC 70,000 Hours |
| Terminals | UL1061, AWG24, +Red, -Black |
| Operating Temperature | -10oC~+70oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
