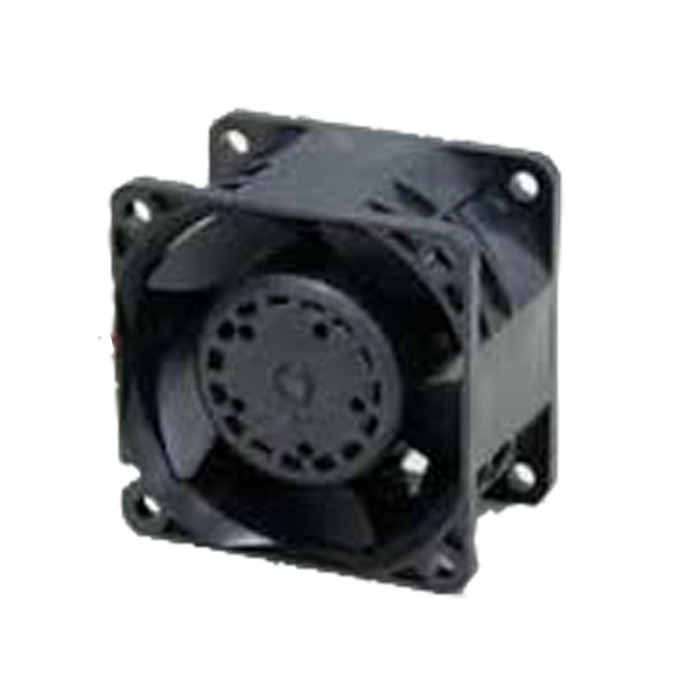

NMB Fans 06038DA-12S-ECF-0
NMB 06038DA-12S-ECF-0 60x38mm 06038DA/2415FB（Single Phase） Series DC Axial Fans
- SKU
- NBF-1728
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 06038DA-12S-ECF-0 |
| Type | DC Axial Fans |
| Series | 06038DA/2415FB（Single Phase） |
| Frame Size | 60x38mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 2.3 A |
| Speed | 17000 RPM |
| Power | 27.6 W |
| Air Flow | 73.1 CFM |
| Static Pressure | 3.55 InH?O |
| Noise | 66.5 dBA |
| Expected life | 40oC 70,000 Hours |
| Terminals | UL10368, AWG24, +Red, -Black |
| Operating Temperature | -10oC~+60oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
