NMB Fans 04056EA-12V-E6G-0

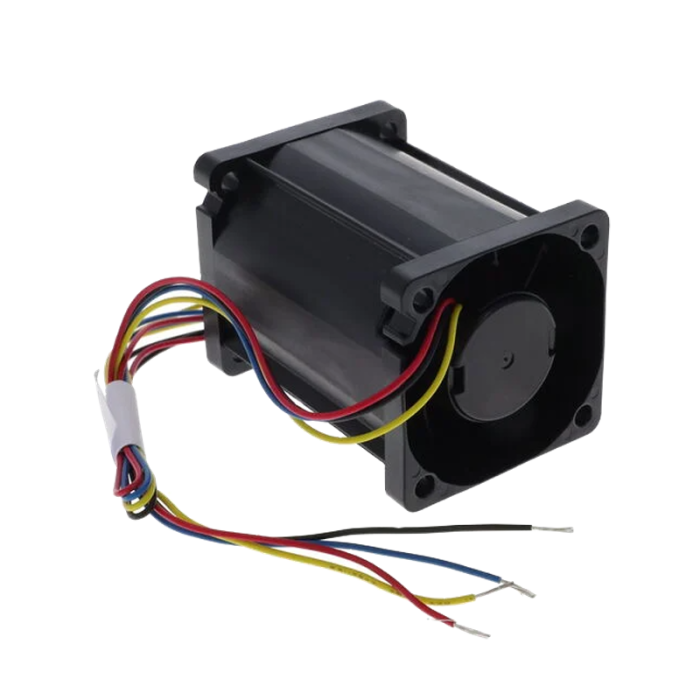

NMB 04056EA-12V-E6G-0 40x56mm 04056EA （G-Type） Series DC Axial Fans
- SKU
- NBF-1727
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 04056EA-12V-E6G-0 |
| Type | DC Axial Fans |
| Series | 04056EA （G-Type） |
| Frame Size | 40x56mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 3.3 A |
| Speed | 31500/31000 RPM |
| Power | 39.6 W |
| Air Flow | 40.6 CFM |
| Static Pressure | 8.7 InH?O |
| Noise | 76 dBA |
| Expected life | 40oC 70,000 Hours |
| Terminals | UL10368, AWG26, +Red, -Black |
| Operating Temperature | -10oC~+60oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
