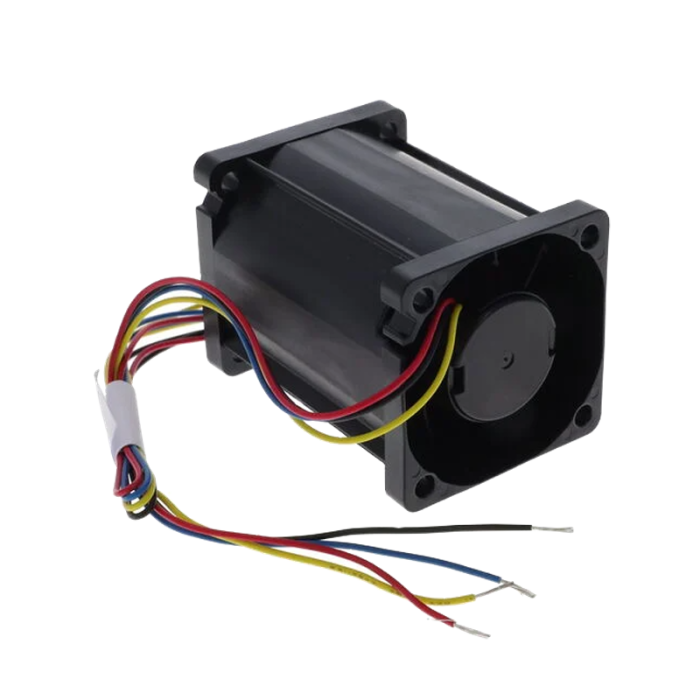

NMB Fans 04056DA-12T-E6E-0
NMB 04056DA-12T-E6E-0 40x56mm 04056DA （E-Type） Series DC Axial Fans
- SKU
- NBF-1726
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 04056DA-12T-E6E-0 |
| Type | DC Axial Fans |
| Series | 04056DA （E-Type） |
| Frame Size | 40x56mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 1.3 A |
| Speed | 29000 RPM |
| Power | 15.6 W |
| Air Flow | 29.8 CFM |
| Static Pressure | 6 InH?O |
| Noise | 60 dBA |
| Expected life | 70oC 44,000 Hours |
| Terminals | UL10368, AWG26, +Red, -Black |
| Operating Temperature | -10oC~+60oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
