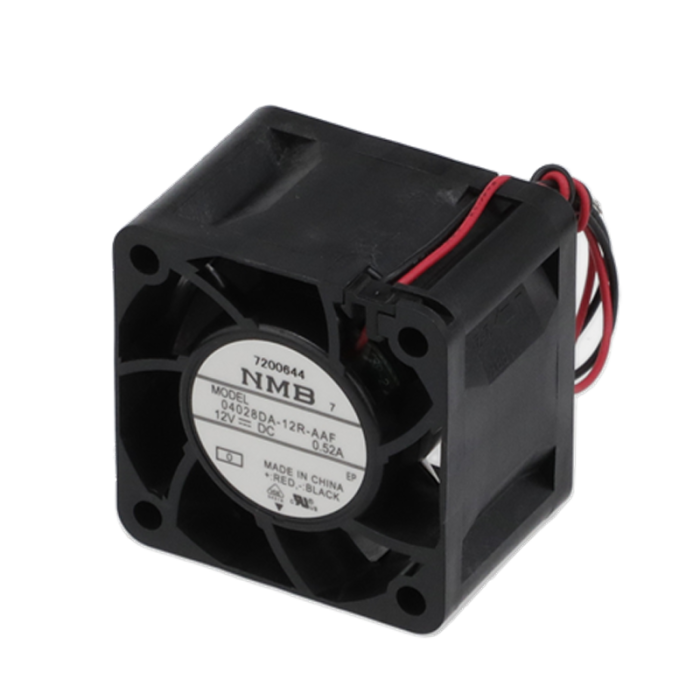

NMB Fans 04028DA-12P-AUF-0
NMB 04028DA-12P-AUF-0 40x40x28mm 04028DA （F-Type） Series DC Axial Fans/PWM Speed Control Fans
- SKU
- NBF-1715
There is no price at present, please contact us.
More Information
| Brand | NMB |
|---|---|
| Model Number | 04028DA-12P-AUF-0 |
| Type | DC Axial Fans/PWM Speed Control Fans |
| Series | 04028DA （F-Type） |
| Frame Size | 40x40x28mm |
| Bearing Type | Ball |
| Voltage | 12 V |
| Current | 0.18 A |
| Speed | 12000 RPM |
| Power | 2.16 W |
| Air Flow | 13.1 CFM |
| Static Pressure | 0.92 InH?O |
| Noise | 45 dBA |
| Expected life | 70oC 44,000 Hours |
| Terminals | UL10368, AWG26, +Red, -Black |
| Operating Temperature | -10oC~+70oC |
| Housing Material | Casing : Plastic (Black)UL94V-0；Impeller : Plastic (Black)UL94V-0 |
